HM-D0
Lab Series
High-performance universal testing machines for tensile, compression and flexural testing.
Model HMD
Lab Series by HOYTOM
Key Specifications
- 1. Capacité (kN): 5, 10, 20
- 2. Course maximum (mm): 877
- 3. Course maximum avec mors de traction hoytom (mm): 700
- 4. Vitesse de déplacement (mm/min): 0.001, 1000
- 5. Distance entre colonne (mm): 447
- 6. Dimensions (mm): L 916 x P 642 x H 1485
- 7. Poids (kg): 260
- 8. Alimentation (v): 220 / mono-phasé
- 9. classe de machine: 0.5
- 10. force minimum en classe 0.5 (n): 30, 30, 75
- 11. Résolution Cellule de force (%): 0.001
- 12. contrôle du déplacement: Encodeur incrémental sur servomoteur
- 13. Résolution mouvement traverse (mm): < 0,001
- 14. précision (%): < 0,1
- 15. contrôle de la machine: Ecran Tactile 21,5’’
- 16. logiciel: HOYWIN Material Testing
Compatible Accessories
Fixture for shoulder-end/screwed samples

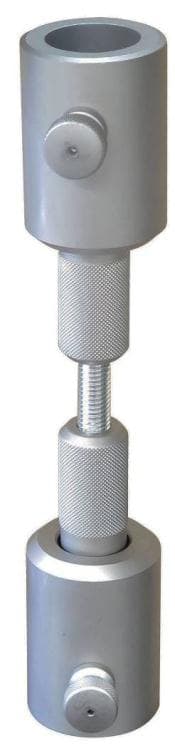

Global system
Fixture for shoulder-end/screwed samples
Insert for shouldered endFixture for shoulder-end/screwed samples
Insert for Double Thread endFixture for shoulder-end/screwed samples
Insert for screw
Wedge Jaws

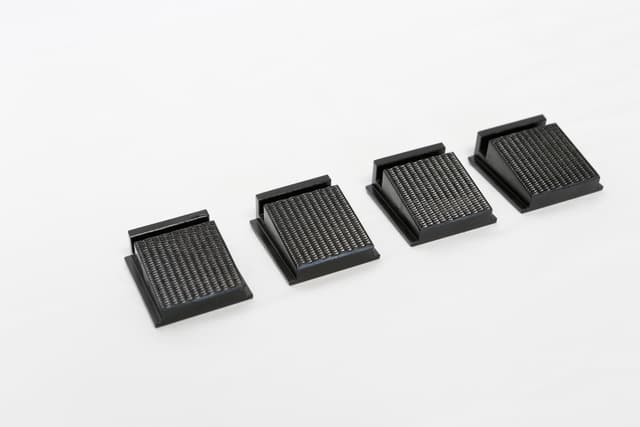

Flat samples
Wedge Jaws

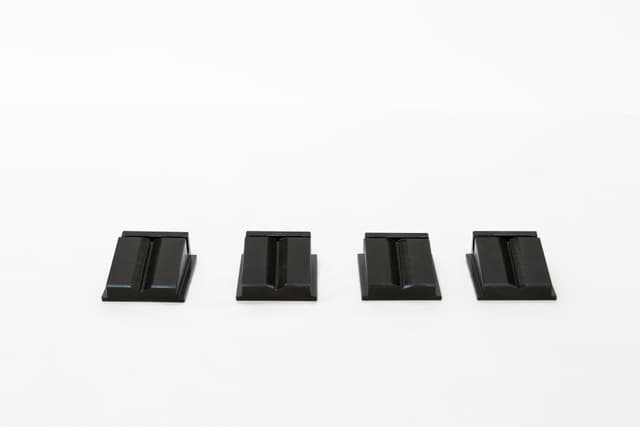

Round sampleTrusted Performance with HBM
Discover how Hoytom integrates high-precision HBM load cells to deliver consistent, accurate results in every material test.
